Pipe Diameter Calculator Demo: Determine Optimal Pipe Size for Flow Systems

Overview

The Pipe Diameter Calculator is an interactive web-tool designed to help engineers and technicians determine the correct pipe size based on flow rate, velocity, and fluid properties. By converting a spreadsheet-based sizing model into a responsive web application via SpreadsheetWeb, you can instantly test scenarios and visualise results without needing standalone spreadsheet software.

What the Pipe Diameter Calculator Does

This calculator enables you to input critical parameters such as volumetric flow rate, fluid velocity (or desired velocity), fluid density, and whether the pipeline is round or rectangular. It then computes the internal diameter required (or conversely the velocity or flow rate given diameter), applies continuity-equation logic, and presents the outcome in a clear format. The tool supports various unit conversions and is suitable for both liquid and gaseous flows.

Because the tool is powered by SpreadsheetWeb, all underlying formulas and logic derived from the original spreadsheet remain intact. Users benefit from real-time updates and interactive visualisations rather than relying on static spreadsheets.

How It Works

The application uses core fluid-continuity relationships such as:

Diameter (D) = 2 × √(Q / (v × π))

where Q = volumetric flow rate and v = flow velocity.

You enter known values (for example flow rate and velocity) and the app solves for diameter. Alternatively, you may enter known diameter and one other variable to solve for the remaining one. The results include cross-sectional area, implied velocity or flow, and provide insight into how sizing changes affect system performance.

Applications

The Pipe Diameter Calculator is particularly useful for:

• Plumbing, HVAC, and piping engineers sizing new pipelines.
• Operations teams tasked with retro-fits or flow-rate upgrades.
• Maintenance and plant engineers verifying existing pipe network adequacy.
• Students and academics studying fluid mechanics and pipe sizing.

Whether you’re designing a water supply line, an industrial process pipe, or a gas distribution header, this calculator helps you assess “what-if” scenarios and choose appropriate diameters early in your design process.

Why Move from Excel to the Web?

Traditional pipe-sizing models often live in Excel worksheets, which can become difficult to manage, share, and maintain. By migrating the logic into a browser-based application with SpreadsheetWeb, organizations gain:

• Cross-device access (desktop, tablet, mobile) without requiring local spreadsheet software.
• A single version of truth for sizing logic, reducing version-control issues.
• Interactive inputs and instant recalculations for faster decision-making.
• Easy embedding into websites or internal portals for broader access.

This modern approach helps streamline engineering workflows and enhances collaboration across teams.

Interactive Demo

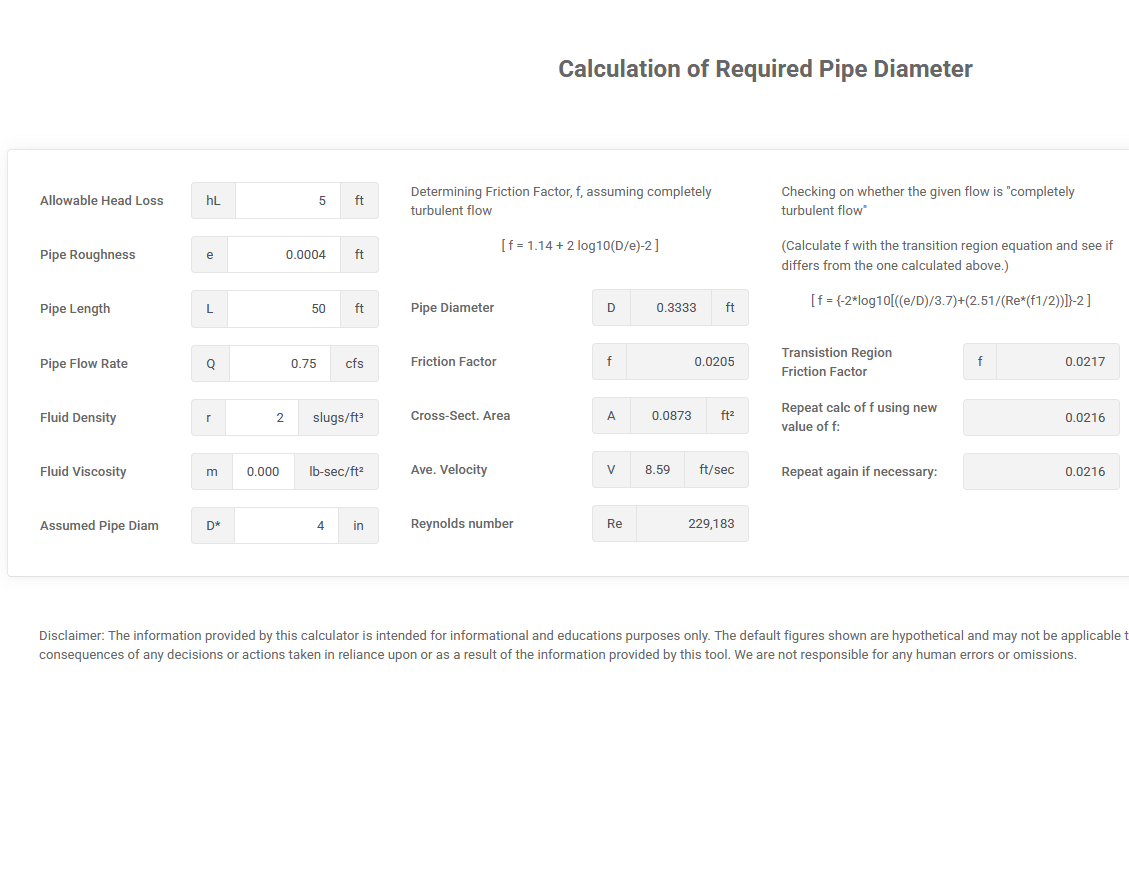

Use the live Pipe Diameter Calculator Demo to:

• Enter your design flow rate or velocity,
• Select fluid type and units,
• Choose pipe shape (round or rectangular),
• Instantly see the required diameter and related metrics.

Experiment with different flow scenarios, larger diameter, higher velocity, different fluids, and instantly observe the impact on sizing and system design.

FAQ

What does the Pipe Diameter Calculator do?
It determines the internal pipe diameter (or conversely velocity/flow) needed for a given fluid system based on provided inputs.

Who can use this tool?
Engineers, pipingsystem designers, maintenance teams, students, and anyone needing to size pipework for fluid transport.

What inputs are required?
You may need flow rate and velocity (or diameter plus one other variable), fluid density if mass flow is involved, and pipe shape/unit selections.

Does the demo include charts or visualisations?
Yes. The application provides dynamic results and may include conversion tables or charts to help interpret the sizing outcomes.

Can I embed this tool on my website?
Yes. SpreadsheetWeb supports embedding this calculator or similar models directly into your website or internal portal with secure access and custom branding.

Note: This tool was built by converting an Excel-based pipe diameter sizing model into a fully interactive web application using SpreadsheetWeb, preserving original logic while enhancing usability, interactivity and deployment flexibility.
